Discussion Starter #1

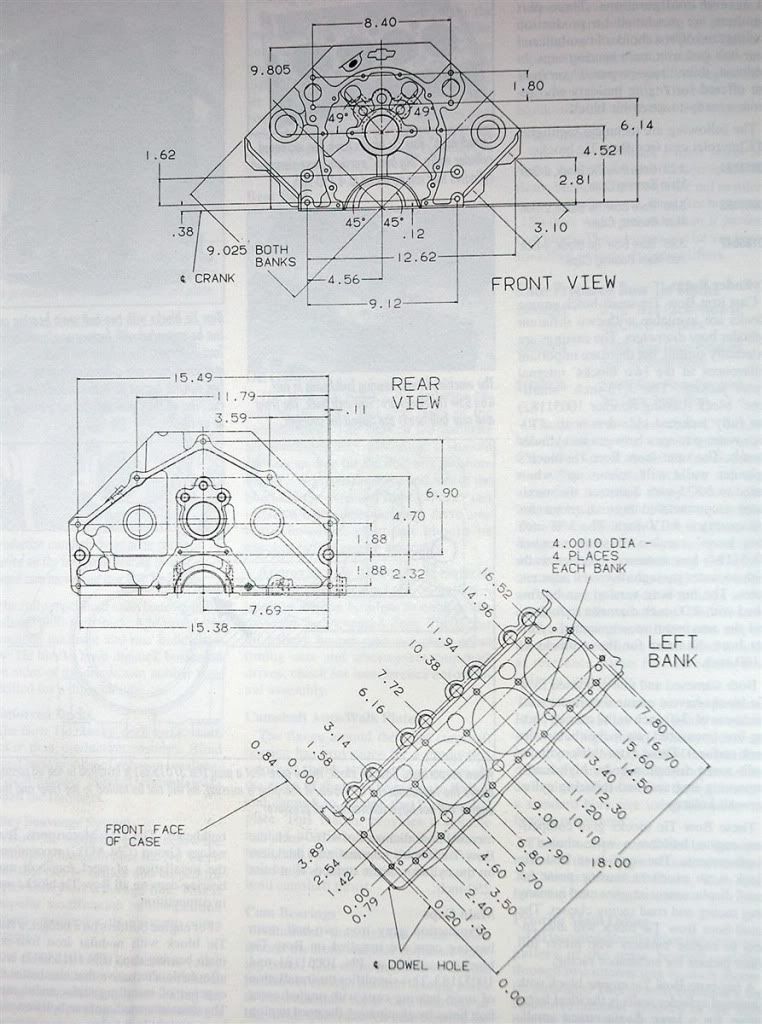

Found this scan in an old picture folder. Don't remember where it came from. I used it to help create a CAD file for a bellhousing I made a few years ago. Everything lined up perfect when finished.

Could be useful for motorplates, etc.



·
Registered
Joined
·
49,436 Posts
be even better with the head mounting holes shown ! Great find nonetheless.
